Description

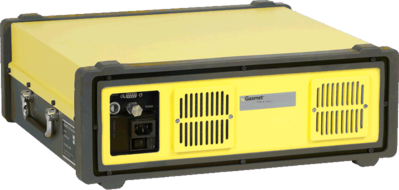

Gasmet™ DX4015 is a portable FTIR gas analyzer for ambient air analysis. The key features of the Gasmet™ DX4015 include a high sensitivity sample cell for lowest possible detection limits and a built-in-pump, which means that there is no need to use a separate sampling system.
Gasmet™ DX4015 is typically set-up to measure a variety of different gases, including VOC´s, acids, aldehydes, and inorganic compounds such as CO, CO2 and N2O. Up to 50 compounds can be measured simultaneously. Gasmet™ DX4015´s sample cell is heated to 50 °C, which allows measurement to be done in conditions where high humidity is expected.
The Gasmet™ DX4015 is operated with an external portable laptop that runs the Calcmet™ software. This easy-to-use program both controls the analyser and does the actual analysis of the results.
SYSTEM PARTS
- DX4015
- Laptop PC with CalcmetTM software: RS232 communication to control DX4015
- Power connection 12 VDC: 12 V cables with battery clips or cigarette lighter connector
- Particulate filtration and heated/unheated lines for gas transport
- Optional analog signals in external PC: ADAM 5000/TCP module (for analog inputs, outputs, relays)
- Optional wheeled cart for the analyzer and laptop computer
KEY ADVANTAGES
- Highest possible sensitivity for low detection limits
- Built-in pump
- Also for high humidity applications due to heated sample cell
AREAS OF APPLICATION
Technical Data
| General Parameters |
| Measuring principle: |
Fourier transform infrared, FTIR |
| Performance: |
Simultaneous analysis of up to 50 gas compounds |
| Response time, T90: |
Typically < 120 s, depending on the gas flow and measurement time |
| Operating temperature: |
Short term 0 – 40 °C, long term 5 – 30 °C
non-condensing |
| Storage temperature: |
-20 – 60 °C, non condensing |
| Power supply: |
100-115 or 230 V / 50 -60 Hz
12 VDC |
| Power consumption: |
Average 150 W, maximum 300 W |
| Spectrometer |
| Resolution: |
8 cm-1 or 4 cm-1 |
| Scan frequency: |
10 scans / s |
| Detector: |
Peltier cooled MCT |
| Source: |
SiC, 1550 K |
| Beamsplitter: |
ZnSe |
| Window material: |
ZnSe |
| Wave number range: |
900 – 4 200 cm-1 |
| Sample Cell |
| Structure: |
Multi-pass, fixed path length 9.8 m |
| Material: |
100 % rhodium coated aluminium |
| Mirrors: |
Fixed, protected gold coating |
| Volume: |
0.4 liters |
| Connectors: |
Inlets Swagelok 6 mm
Outlet Swagelok 6 mm |
| Gaskets: |
Viton® O-rings |
| Temperature: |
50 °C, maximum |
| Valve: |
Manual Swagelok |
| Window material: |
Ar coated ZnSe |
| Measuring parameters |
| Zero point calibration: |
24 hours, calibration with nitrogen
(4.0 or higher N2 recommended) |
| Zero point drift: |
< 2 % of measuring range per zero point calibration interval |
| Sensitivity drift: |
none |
| Linearity deviation: |
< 2 % of measuring range |
| Temperature drifts: |
< 2 % of measuring range per 10 K temperature change |
| Pressure influence: |
1 % change of measuring value for 1 % sample pressure change. Ambient pressure changes measured and compensated |
| Electrical connectors |
| Digital interface: |
9-pole D-connector for RS-232
Analyzer is connected to an external computer via RS-232C cable. The external computer controls Gasmet. |
| Power connection: |
Standard plug CEE-22 |
| Gas Inlet and Outlet Conditions |
| Gas temperature: |
Non-condensing, the sample gas temperature should be the same as the sample cell temperature |
| Flow rate: |
120 – 360 liters per hour |
| Gas filtration: |
Filtration of particulates (2 µ) required |
| Sample gas pressure: |
Ambient |
| Sample pump: |
Internal, for ambient air only |
| Electronics |
| A/D converter: |
Dynamic range 95 dB |
| Signal processor: |
32-bit floating point DSP
120 MFLOPS speed |
| Computer: |
External, not included |
| Analysis software (for external PC) |
| Operating system: |
Windows XP |
| Analysis software: |
Calcmet for Windows |
| Options |
| Sample cell: |
Multi-pass, fixed path 2.5 m or 5.0 m |
| Pressure measurement: |
Inside sample cell |
| Analog signals (ext PC): |
ADAM 5000/TCP module (for analog inputs, outputs, relays) |
| Sample cell gaskets: |
Teflon® coated Viton® or Kalrez® |
| Power connection: |
12 VDC |
| Power supply cables: |
12 V cables with battery clips or cigarette lighter connector |
| Trolley: |
Wheeled cart for the analyzer and laptop computer |
| Enclosure |
| Material: |
Aluminium |
| Dimensions (mm): |
438 * 164 * 445 |
| Weight: |
14.9 kg |
| CE label: |
According to EMI guideline 89/336/EC |
Gasmet Technologies Oy shall not be liable for technical or editorial errors or omissions contained herein. The information in this document is provided “as is” without warranty of any kind and is subject to change without notice. Should you find any errors, we would appreciate if you notified us.
