2 of Pollutants Standard modules
| Dimensions (H/W/D, w/o handle and sample inlets) |
890/782/400 mm35/30.8/15.8 in. |
| Weight |
65.8 kg/145.1 lbs |
| Power consumption* |
max. 670 W |
| Flow |
<2000ccm/min +2000 ccm/min for nephelometer |

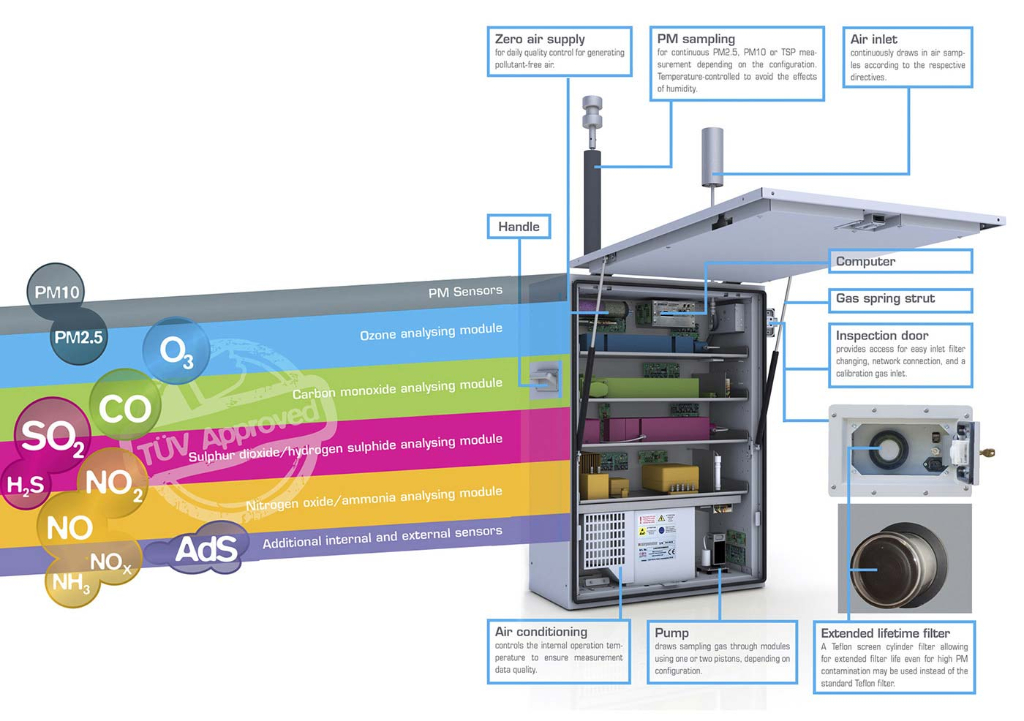

Construction:
Well-isolated double aluminium constructionStandard monitoring modules on removable drawers
Rugged, inconspicuous burglar-proof design
Standard equipment:
Internal air conditioning and temperature control
Maintenance door
Cylinder lock (standard)
Zero air supply
Operating temperature
-20 °C/-4°F to +42 °C/108°F (optional heating for down to -40 °C/-40°F)
Options
Various types of mounting bracketsWireless communication (GPRS, 3G,…)
Sample gas conditioning (high relative humidity, high PM exposure)
Integration of external devices and instruments (e.g. 4-20 mA, RS-232, Modbus via IP,…)
Solutions to communicate with external data systems (e.g. TCP-IP, Modbus via IP, RS-232, 4-20 mA,…)
Various base frames and handling devices for on-site operation (roadside, workshop, indoor, pickup truck, trailer,…)
Pollutants Standard modules
| Pollutant |
Weight |
| NO/NO2/NOX |
Weight: 12.0 kg/26.5 lbs optional: span module |
| NH3 |
Only combined with NOX module |
| O3 |
Weight: 5.8 kg/12.8 lbs,optional: span module |
| SO2 (H2S) |
Weight: 8.5 kg/18.7 lbs,optional: span module; optional: H2S module |
| CO |
Weight: 9.0 kg/19.8 lbs,optional: span module |
More sensor modules
- Photoionisation detector (PID) for volatile organic compounds (VOC)
- Nephelometer for indicative PM monitoring (PM10, PM2.5)
- Meteorological sensors: wind direction, wind velocity, temperature, air pressure, relative humidity, precipitation, made by various manufacturers
- Traffic data sensors: traffic count, made by various manufacturers
- Noise sensors, made by various manufacturers
- Electrochemical sensors for formaldehyde, ethane, chlorine…
- For industrial applications, environmental hygiene, and indoor air quality monitoring (IAQ)
- Sensors for monitoring indoor CO2 (IAQ)
- Navigation system (GPS) for linking monitoring data with geographical data
|
4 of Pollutants Standard modules
| Dimensions (H/W/D, w/o handle and sample inlets) |
1120/782/400 mm
44.1/30.8/15.8 in |
| Weight |
73.9 kg/162.9 lbs |
| Power consumption* |
max. 670 W |
| Flow |
<3000ccm/min +2000ccm/min for nephelometer |
Construction:
Well-isolated double aluminium constructionStandard monitoring modules on removable drawers
Rugged, inconspicuous burglar-proof design
Standard equipment:
Internal air conditioning and temperature control
Maintenance door
Cylinder lock (standard)
Zero air supply
Operating temperature
-20 °C/-4°F to +42 °C/108°F (optional heating for down to -40 °C/-40°F)
Options
Various types of mounting bracketsWireless communication (GPRS, 3G,…)
Sample gas conditioning (high relative humidity, high PM exposure)
Integration of external devices and instruments (e.g. 4-20 mA, RS-232, Modbus via IP,…)
Solutions to communicate with external data systems (e.g. TCP-IP, Modbus via IP, RS-232, 4-20 mA,…)
Various base frames and handling devices for on-site operation (roadside, workshop, indoor, pickup truck, trailer,…)
Pollutants Standard modules
| Pollutant |
Weight |
| NO/NO2/NOX |
Weight: 12.0 kg/26.5 lbs optional: span module |
| NH3 |
Only combined with NOX module |
| O3 |
Weight: 5.8 kg/12.8 lbs,optional: span module |
| SO2 (H2S) |
Weight: 8.5 kg/18.7 lbs,optional: span module; optional: H2S module |
| CO |
Weight: 9.0 kg/19.8 lbs,optional: span module |
More sensor modules
- Photoionisation detector (PID) for volatile organic compounds (VOC)
- Nephelometer for indicative PM monitoring (PM10, PM2.5)
- Meteorological sensors: wind direction, wind velocity, temperature, air pressure, relative humidity, precipitation, made by various manufacturers
- Traffic data sensors: traffic count, made by various manufacturers
- Noise sensors, made by various manufacturers
- Electrochemical sensors for formaldehyde, ethane, chlorine…
- For industrial applications, environmental hygiene, and indoor air quality monitoring (IAQ)
- Sensors for monitoring indoor CO2 (IAQ)
- Navigation system (GPS) for linking monitoring data with geographical data
|
2 of Pollutants Standard modules
Type approved PM10 or PM2.5 monitor (Thermo 5030 SHARP, Met One BAM1020)
| Dimensions (H/W/D, w/o handle and sample inlets) |
1200/782/615 mm
47.2/30.8/24.2 in. |
| Weight |
110 kg/242.5 lbs |
| Power consumption* |
max. 1100 W |
| Flow |
<2000ccm/min +16.7l/min for PM monitor |
Construction:
Well-isolated double aluminium constructionStandard monitoring modules on removable drawers
Rugged, inconspicuous burglar-proof design
Standard equipment:
Internal air conditioning and temperature control
Maintenance door
Cylinder lock (standard)
Zero air supply
Operating temperature
-20 °C/-4°F to +42 °C/108°F (optional heating for down to -40 °C/-40°F)
Options
Various types of mounting bracketsWireless communication (GPRS, 3G,…)
Sample gas conditioning (high relative humidity, high PM exposure)
Integration of external devices and instruments (e.g. 4-20 mA, RS-232, Modbus via IP,…)
Solutions to communicate with external data systems (e.g. TCP-IP, Modbus via IP, RS-232, 4-20 mA,…)
Various base frames and handling devices for on-site operation (roadside, workshop, indoor, pickup truck, trailer,…)
Pollutants Standard modules
| Pollutant |
Weight |
| NO/NO2/NOX |
Weight: 12.0 kg/26.5 lbs optional: span module |
| NH3 |
Only combined with NOX module |
| O3 |
Weight: 5.8 kg/12.8 lbs,optional: span module |
| SO2 (H2S) |
Weight: 8.5 kg/18.7 lbs,optional: span module; optional: H2S module |
| CO |
Weight: 9.0 kg/19.8 lbs,optional: span module |
More sensor modules
- Photoionisation detector (PID) for volatile organic compounds (VOC)
- Nephelometer for indicative PM monitoring (PM10, PM2.5)
- Meteorological sensors: wind direction, wind velocity, temperature, air pressure, relative humidity, precipitation, made by various manufacturers
- Traffic data sensors: traffic count, made by various manufacturers
- Noise sensors, made by various manufacturers
- Electrochemical sensors for formaldehyde, ethane, chlorine…
- For industrial applications, environmental hygiene, and indoor air quality monitoring (IAQ)
- Sensors for monitoring indoor CO2 (IAQ)
- Navigation system (GPS) for linking monitoring data with geographical data
|
