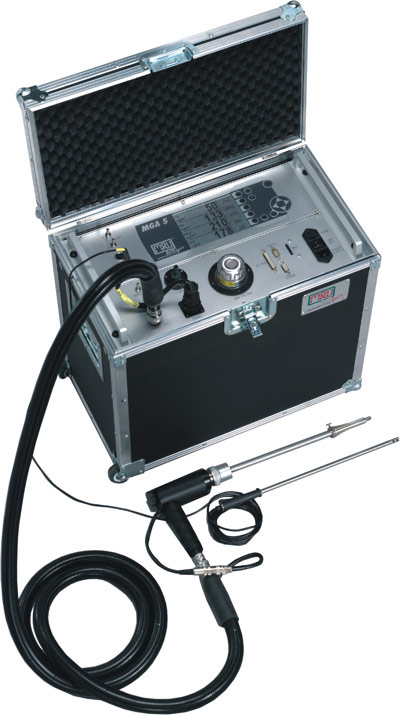

MGA 5

Basic Equipment

• Double stage gas cooler with automatic condensate draining pump
• Heated gas sampling line (3 or 5 m) with 300 … 2.000 mm sampling tube
• Automatic internal test and control of soft- and hardwarefunctions
• Large, high-contrast and backlit graphical display with zoom function
• Large fuel type list including self choose fuels with user definable fuel types
• RS 232 interface and internal data memory for approx. 8.500 measurements
• RS 485 interface for external MRU smart sensor (transmitter) connection
• Automatic interval measurement
• Data-visualization and evaluation software for PC (32bit Data Logger)
• Solenoid valve for automatic zeroing and for calibration
• Universal analog input (4 … 20 mA or 0 … 10 V) or additional NiCrNi thermocouple input
• 8 channel analog output 4 … 20 mA with user configurable output
• Internal battery, for protection against short grid power supply failure (less then 1 minute)
