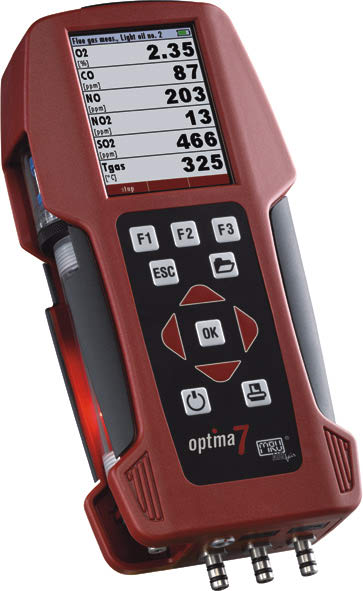

Optima7

Flue gas Analyzer

The most powerful handheld MULTIGAS ANALYZER for industrial combustions, emission- and process monitoring using up to 7 electrochemical sensors

Category: MRU

Basic Equipment

Trend setting technology with up to 7 gas sensors
Modern, slimline enclosure with fixing magnets
Super bright, colour 3,5” TFT-display with LED backlight
Mini-USB for cable data transfer
Bluetooth wireless data transfer
IRDA interface for high speed infrared printer
Integrated condensate trap with PTFE filter and LED backlight
Menu guided software and function keys
Robust stainless steel gas connectors

Technical Data

Measuring Range

CO2	(infrared) 0 … 20 %
O2	0 … 21 %
NO	0 … 5.000 ppm
NO2	0 … 1.000 ppm
SO2	0 … 5.000 ppm
H2S	0 … 2.000 ppm
CO (H2 compensated)	0 … 10.000 ppm
Differential pressure	± 100 hPa
Fluegas temperature	0 … 1.100°C; with suitable probe

Dimensions and other data

Data storage	internally as well as on SD-card
Data transfer	via Bluetooth (option) or USB-cable
Display	3,5″ colour-TFT
Flow velocity	1 … 100 m/s
Combustion air temperature	K-type standard (option)
Battery operating time	up to 15 hours non-stop operation with lithium ion battery
Weight	approx. 750 g
Dimensions	110 x 225 x 52 mm
Fluegas temperature	0 … 1.100°C; with suitable probe

Downloads

Flyer Optima7 pdf – 271,33 KB
